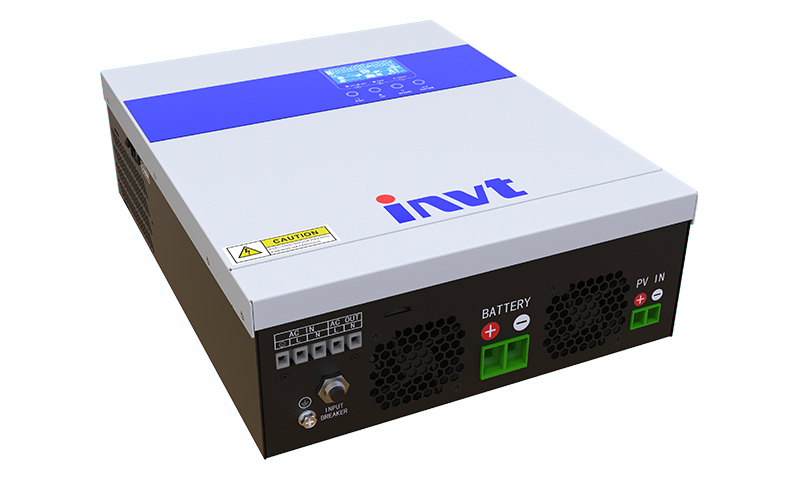

XN 3024

Single Phase Off-Grid Solar Inverter

Key Feature

XN3024 single-phase off-grid solar inverter is suitable for non-power area, nomadic area, communication base station, power instability area, island, border post, scenic area management office, newspaper booth, battery pack matching of battery manufacturer, etc. Equipped with LCD display, XN3024 single-phase off-grid solar inverter supports RS232, with exquisite design.
  • Built-in 80A MPPT solar charge
  • Wide PV input voltage range
  • Support cold start
  • Intelligent fan speed adjustment
  • Over load / over temperature / short circuit protection
  • Smart battery charger design, optimize battery performance
  • Support grid / generator input
  • Compatible with lithium battery
  • Multiple charging voltage levels for different batteries
  • Multiple work mode, support AC priority, solar priority
Rated Power 3200VA/3000W
Voltage 230Vac
Selectable Voltage Range 170Vac~280Vac (for personal computers)
90Vac~280Vac (for home appliances)
Frequency Range 50Hz / 60Hz (auto sensing)
AC Voltage Regulation (Batt. Mode) 230Vac±5%
Surge Power 6400VA
Overload Capability 5s@≥150% load; 10s@110%~150% load
Efficiency (Peak) 94%
Transfer Time 10ms (for personal computers); 20ms (for home appliances)
Waveform Pure Sine Wave
Battery Nominal Voltage 24Vdc
Floatingg Charge Voltage 27Vdc
Overcharge Protection 31Vdc
Solar Charger & AC Charge
Solar Charger Type MPPT
Maximum PV Array Power 3000W
Rated PV voltage 240Vdc
MPPT Range 90Vdc ~ 430Vdc
Maximum PV Array Open Circuit Voltage 450Vdc
Maximum Utility Charge Current 60A
Maximum Solar Charge Current 80A
Protection AC Short Circuit Protection, AC Over Current Protection, Over Temperature Protection, etc.
Display LCD
Communication Port RS232
Standard Compliance
Safety/ EMC CE
General Data
Dimension (W x H x D) 348 x 282 x 105 mm
Net Weight 5.5kg
Protect Degree IP21
Operating Temperature  0°C ~ +55°C
Storage Temperature  -15°C ~ +60°C
Humidity 5%-95% (non-condensing)
